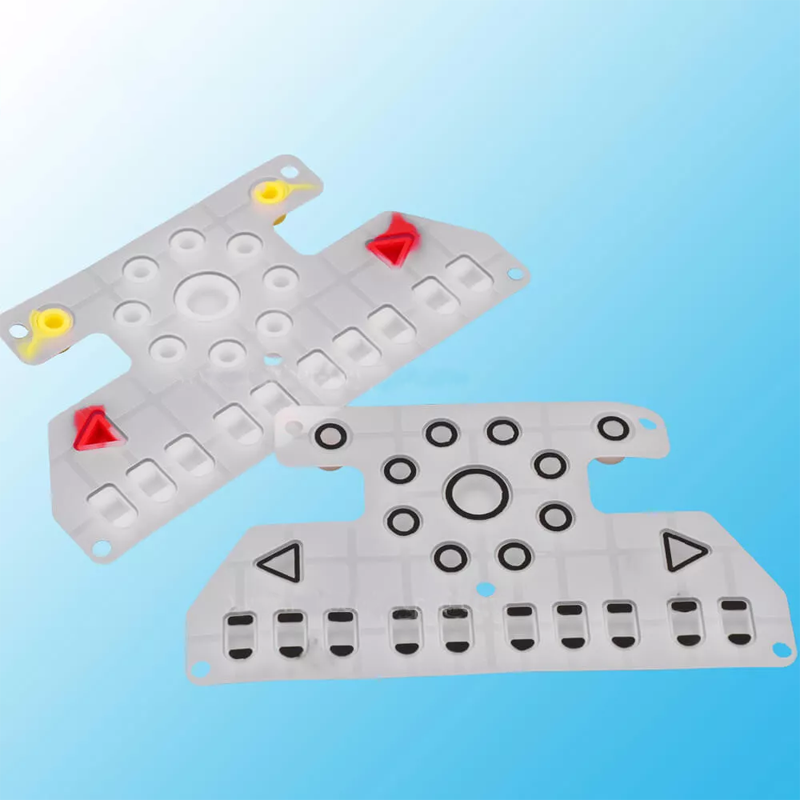

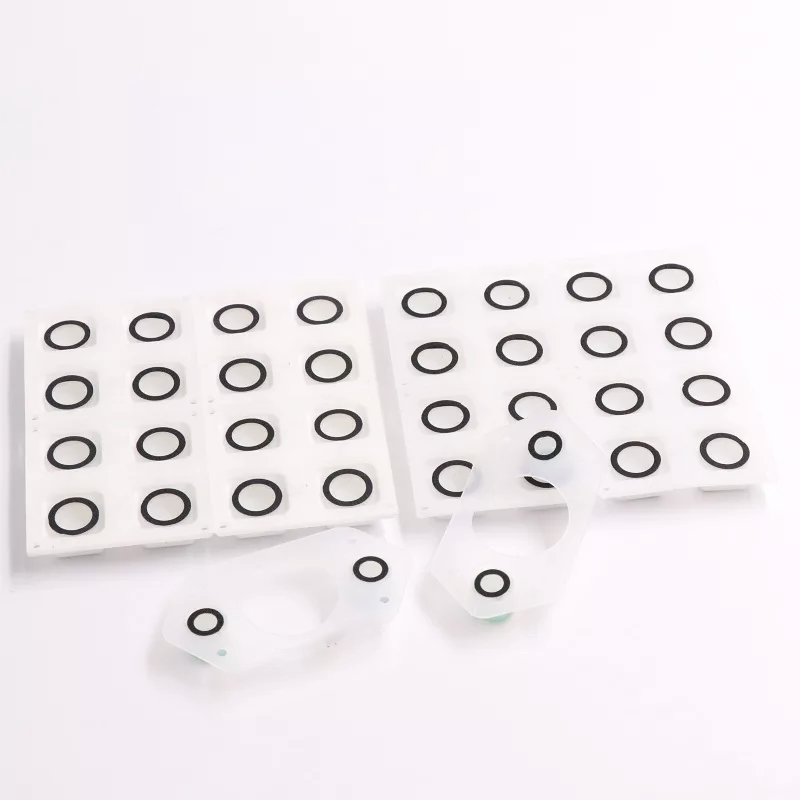

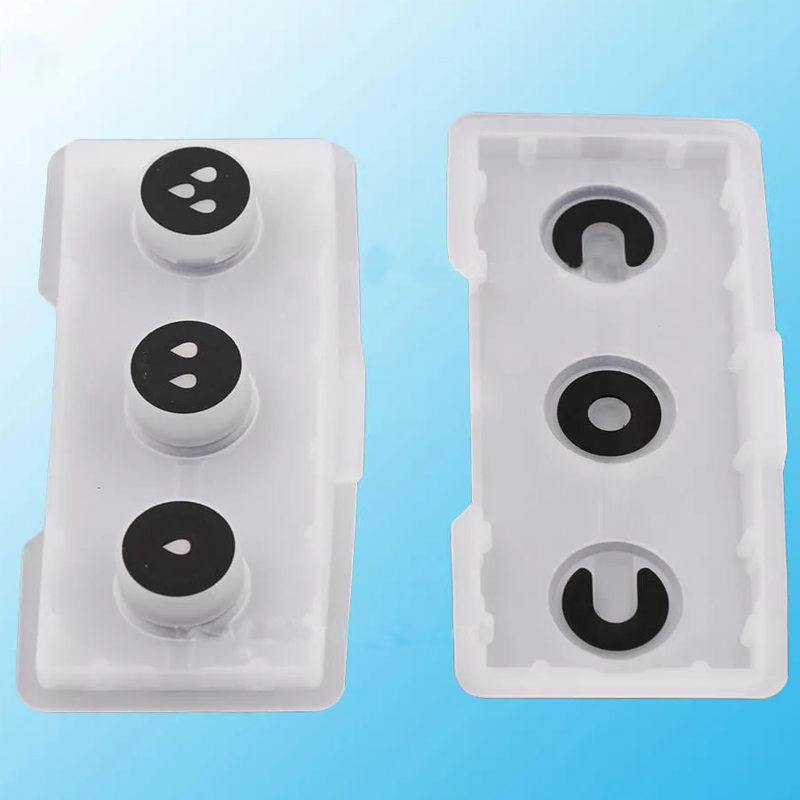

Conductive Printing Ink Silicone Rubber Keypad

Introduction:

Conductive silicone rubber keypads are engineered to enable electrical conduction using specially formulated rubber compounds. When a key is pressed, it makes contact with the PCB, allowing electrical conductivity; releasing the key interrupts this conductivity. Manufactured through the precise process of silicone compression molding, these keypads are widely used in remote controls and various switch applications. The advantages of conductive silicone rubber keypads include reliable performance, durability, and adaptability to a wide range of designs, making them an ideal choice for both consumer electronics and industrial applications.

Features:

Quality Test Process:

1. Visual Inspection: The first step involves a thorough visual examination of the keypads to identify any surface defects, irregularities, or contamination. This ensures that the appearance of the product meets the required specifications.
2. Conductivity Testing: This step evaluates the electrical conductivity of the printed ink on the silicone rubber. The keypads are tested for consistent and reliable electrical performance by simulating the pressing of keys and ensuring that the conductive pathways function as intended.
3. Hardness Testing: The silicone rubber’s hardness is measured using standardized methods to ensure that the material meets the required durometer specifications. This step is crucial to verify that the keypad provides the appropriate tactile feedback and durability.
4. Abrasion Resistance Testing: This test assesses the durability of the printed ink and the silicone surface against wear and tear. The keypads are subjected to repeated mechanical abrasion to ensure that the ink remains intact and legible throughout the product’s lifespan.
5. Environmental Testing: Keypads are exposed to various environmental conditions, including temperature extremes, humidity, and UV exposure, to assess their resistance to environmental factors. This ensures that the keypads can withstand the operational conditions they will encounter in real-world applications.
6. Compression Testing: This involves applying pressure to the keypad to test its resilience and ability to return to its original shape after deformation. The test ensures the keypad maintains its structural integrity and functional performance over time.
7. Life Cycle Testing: To ensure longevity, the keypads undergo a life cycle test, where they are repeatedly pressed to simulate long-term use. This step verifies that the keypad maintains consistent performance over an extended period.
8. Adhesion Testing: The adhesion of the conductive ink to the silicone rubber is tested to ensure it remains securely bonded throughout the product’s use. Poor adhesion could lead to functional failures, so this step is critical.

These steps collectively ensure that the Conductive Printing Ink Silicone Rubber Keypads meet the stringent quality requirements necessary for reliable and durable performance in their intended applications.
