Description:

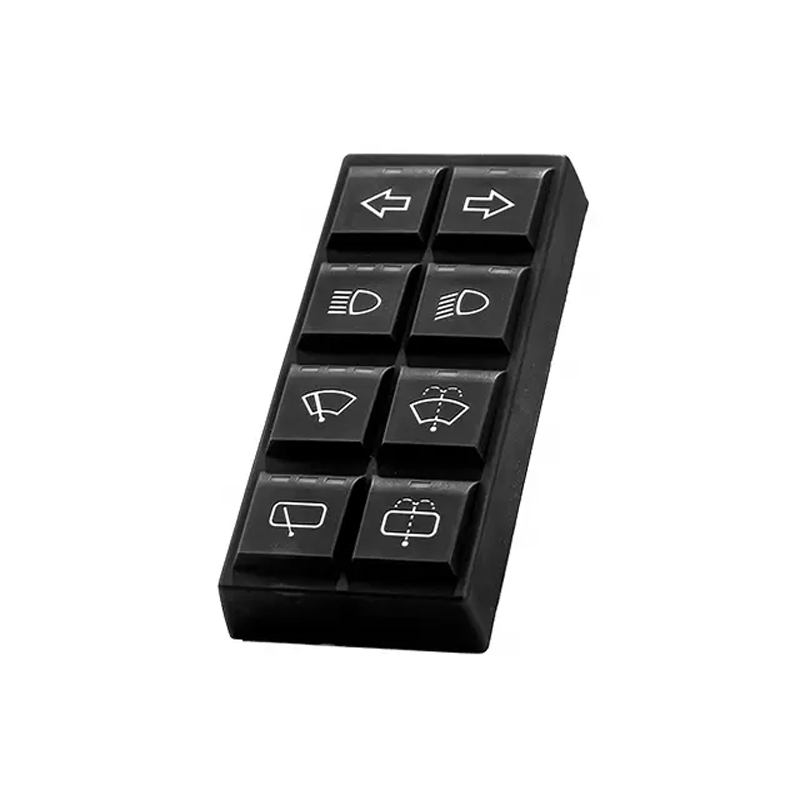

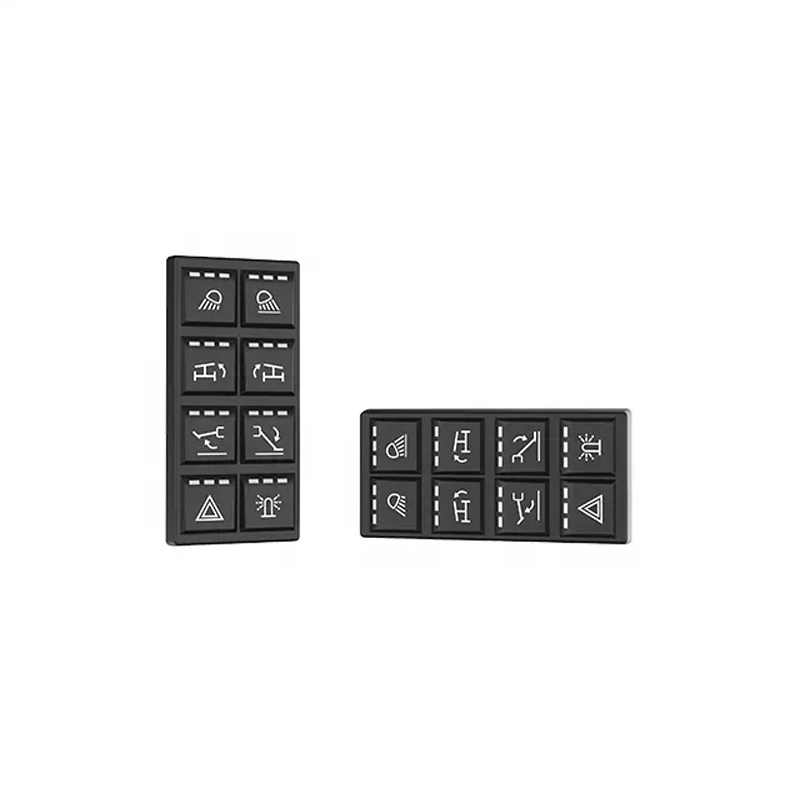

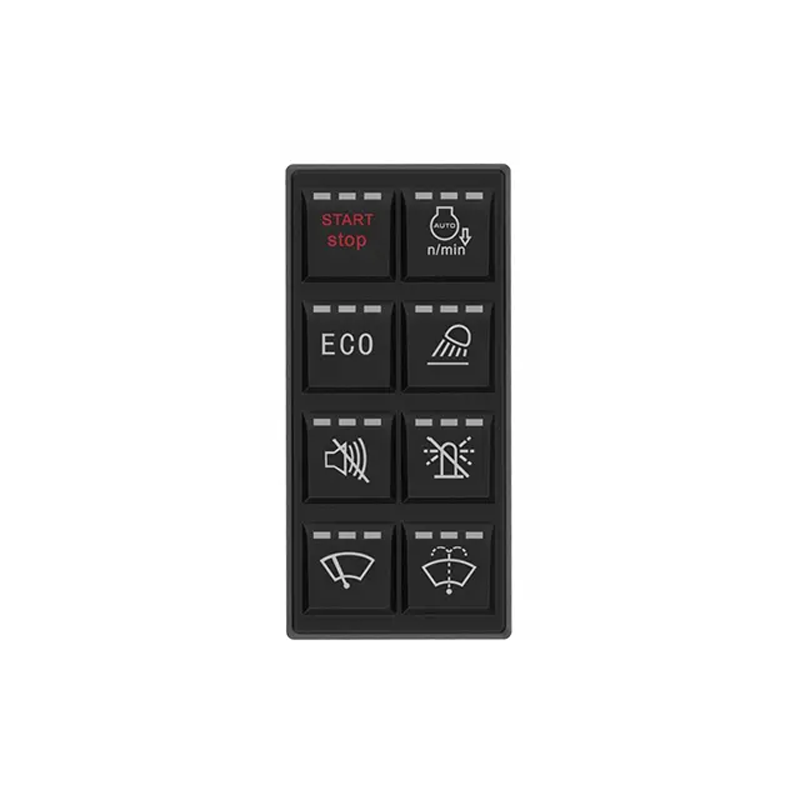

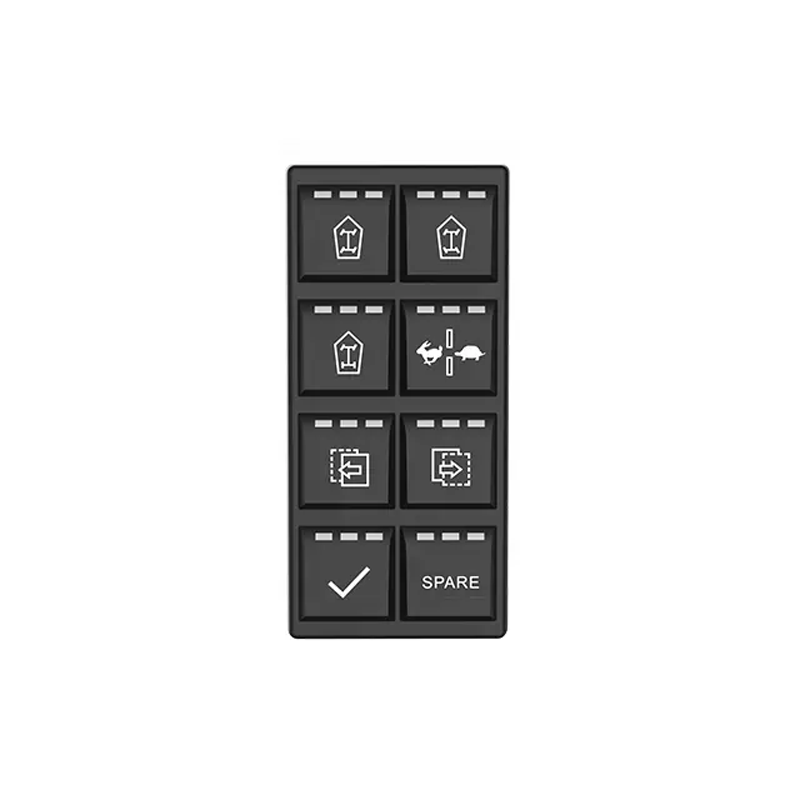

Automotive Compression Molding Silicone Rubber Keypad Keyboards are high-performance, precision-crafted interfaces produced using silicone compression molding. We use premium-grade Liquid Silicone Rubber (LSR) or High-Temperature Vulcanized (HTV) silicone, ensuring exceptional temperature resistance (-50°C to 250°C), superior tactile feedback, and enhanced durability against UV exposure and chemicals. Our ISO 9001 and IATF 16949-certified facility offers comprehensive, one-stop solutions, ranging from 3D prototyping and mold design to production that complies with UL and ROHS standards. We also conduct extensive validation testing, including IP67/68 ratings and 100k+ cycle endurance tests. These keypads are ideal for automotive OEMs requiring custom shapes, backlighting, or EMI shielding, all supported by full traceability and fast lead times.
Basic Information:
- Place of Origin: Xiamen, China
- Brand Name: OEM
- Technology Process: Silicone Compression Molding
- Sample: Available
- Material: Silicone
- Color: Custom
- Size: Custom
- Certification: IATF, ROHS, FDA
- MOQ: According to Your Requirement
- Conductive Methods: Carbon Pill, Metal Dome, Ink Printing
Manufacturing Process:
- Precision Mold Design
CNC-machined steel molds with ±0.05mm tolerance replicate tactile button contours, symbols, and automotive-grade sealing features.
- Material Preparation
High-consistency silicone rubber (HCR) is compounded with conductive carbon (for ESD resistance) and UV stabilizers, meeting ISO 9001/IATF 16949 standards.
- Compression Molding
Pre-weighed silicone blanks are cured under 300–350°F heat and 1,500–2,500 PSI pressure for 5–10 minutes, ensuring uniform density and tear-resistant edges.
- Post-Vulcanization
Secondary baking (250°F, 2–4 hrs) eliminates residual volatiles, enhancing thermal stability (-40°F to 392°F) and compression set resistance.
- Laser Engraving/Backlighting
Symbols/icons are laser-etched or filled with translucent silicone for backlit functionality (IP67-rated).
- Dimensional Inspection
3D laser scanners (Keyence) and durometers (Shore A 40–60) verify thickness (±0.1mm) and tactile feedback compliance.
- Electrical & Durability Testing
Automated keystroke testers (50,000+ cycles), ESD/EMI shielding checks, and chemical resistance validation (SAE J1455).
- Automotive-Grade Packaging
Anti-static, moisture-proof packaging with batch traceability for OEM/Tier 1 integrations.
Benefits of Our Keypad:
- Precision Tactile Performance
CNC-machined molds (±0.05mm) ensure consistent button actuation force (100–300g) and IP67-rated sealing for dust/water resistance.
- ESD & UV Resistance
Carbon-black-infused silicone and UV stabilizers comply with SAE J1455, preventing static buildup and cabin UV degradation (-40°F to 392°F).
- Durability-Optimized Molding
High-pressure compression (2,500 PSI) eliminates air pockets, achieving tear-resistant edges and >500,000 keystroke cycles (per OEM-TS 16949).
- Thermal Stability
Post-vulcanization reduces compression set (<20% at 158°F/70hrs), ensuring long-term resilience in extreme automotive environments.
Factory Show:
Our advanced facility is equipped with precision technologies, including CNC machining, Mirror EDM, and Slow-Speed Wire Cutting, ensuring exceptional mold fabrication. With 15 rubber compression molding machines and 2 LSR injection molding machines, we optimize both production capacity and efficiency.
We uphold rigorous quality standards with advanced inspection tools like 3D projectors, sealing testers, durometers, and elasticity testers, all managed by certified quality control professionals. Our operations are ISO 9001 and IATF 16949 certified, guaranteeing consistent, high-quality components.
Automation systems, including AutoDryers, high-speed doming machines, and die-cutting equipment, streamline production, ensuring precision and reliable performance at every stage.
