At Siliconekeytech, we recognize that the performance and reliability of silicone rubber keyboards are paramount for a variety of industries, from industrial machinery to consumer electronics and medical devices. Our commitment to producing high-quality keyboards is reflected in our meticulous testing procedures. To ensure that every keyboard meets or exceeds the most demanding standards of performance, we have developed a comprehensive testing process that evaluates key functional aspects, including dimensions, mechanical response, electrical performance, durability, and environmental resilience.
In this article, we will walk you through the various testing stages we employ to guarantee the precision and reliability of each silicone rubber keyboard, ensuring they consistently meet the specific needs of our clients.
-
Dimensional Accuracy and Fit Testing
The first and foremost aspect of evaluating silicone rubber keyboards is ensuring that all components meet the precise dimensional specifications outlined by the customer. This step ensures the keyboard will integrate seamlessly into its intended application without any issues.
Testing Method:
We employ advanced measuring equipment, such as high-precision digital calipers, micrometers, and laser measurement systems, to precisely measure the length, width, and thickness of each individual key and the overall keyboard. The alignment and spacing of keys are also carefully checked to confirm uniformity and adherence to customer specifications.
Industry Standards:
In the absence of specific customer tolerances, we reference international standards like ISO 3302-M2, which provides guidelines on the acceptable tolerances for rubber products. This ensures that every keyboard produced at Siliconekeytech adheres to stringent dimensional accuracy, ensuring a perfect fit and compatibility with the surrounding components in the system.
-
Actuation Force and Feedback Testing
A key performance feature of silicone rubber keyboards is the actuation force, which directly impacts the tactile experience for the user. If the actuation force is too high, the keyboard may feel stiff and uncomfortable; if it is too low, it may lead to accidental key presses or insufficient feedback.
Testing Method:

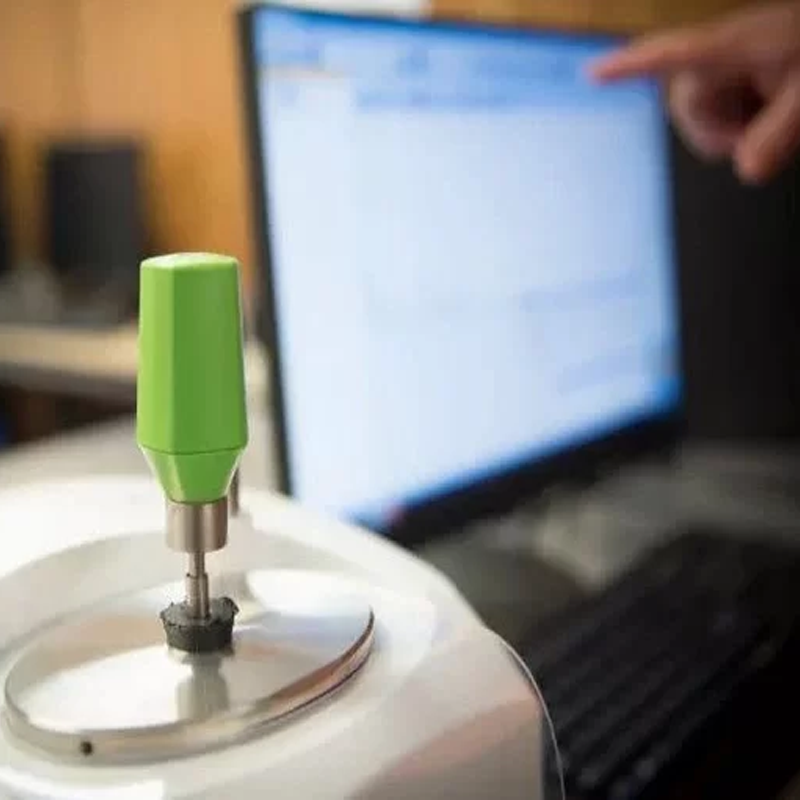

To measure the force required to actuate each key, we use a state-of-the-art actuation force testing machine that applies pressure to each key individually. The machine records the amount of force needed to activate the key and ensures that it falls within the customer-specified range.
Standards:
Our force testing follows industry standards for various applications:
– Light touch keys: 20 ± 20-25g
– Medium force keys: 100 ± 15-20g
– Heavy keys: 150 ± 20-25g
– Extra-heavy keys: 200-300g ± 50g
This range is meticulously adjusted based on customer requirements to ensure the correct tactile response for each application, whether it be for consumer products, medical equipment, or industrial devices.
-
Contact Resistance Testing

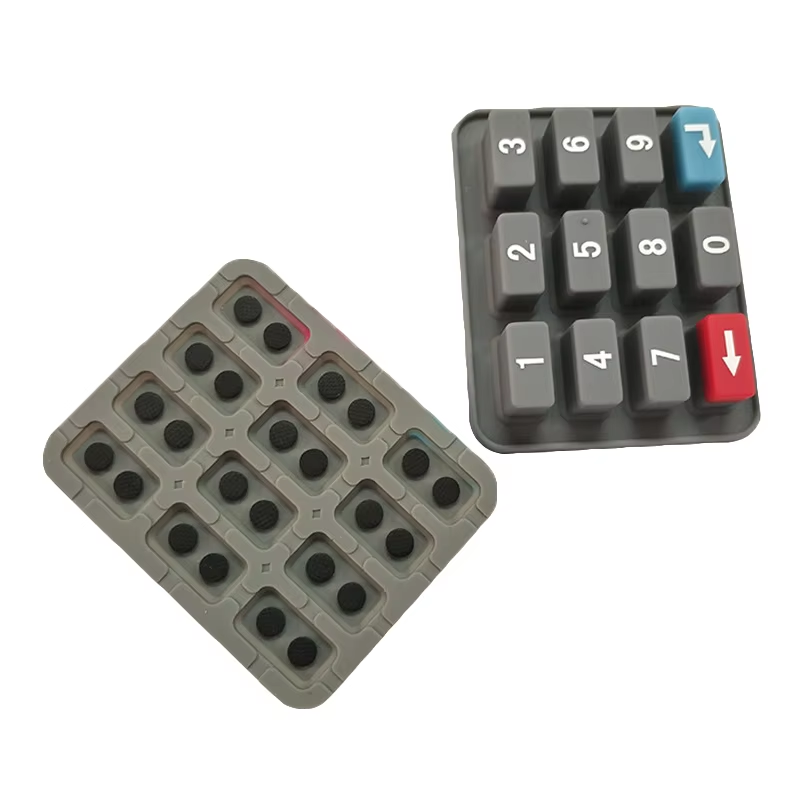

The functionality of a silicone rubber keyboard is heavily dependent on the conductive properties of its keys. Ensuring that the contact resistance remains low is crucial for reliable electrical performance.
Testing Method:
We employ digital multimeters (avometers) to measure the resistance across the conductive elements of the keyboard, which include carbon pills or conductive ink in many designs. The resistance values must be within specific thresholds to ensure efficient signal transmission when a key is pressed.
Standard Resistance Values:
– Carbon pill resistance: Less than 100 ohms
– Transfer printed conductive ink: Less than 2500 ohms
– Silkscreen printed conductive ink: Less than 500 ohms
These strict resistance levels ensure that every key on the keyboard delivers the intended electrical signal to the circuit board with minimal signal degradation, which is especially critical in medical devices or high-precision machinery.
-
Key Lifetime and Durability Testing
Durability is one of the most important considerations when evaluating silicone rubber keyboards, particularly for applications where high-frequency usage is expected. We conduct rigorous key lifetime testing to simulate extended use and ensure that the keys will maintain their functional and aesthetic integrity over time.
Testing Method:
We utilize automated testing equipment that simulates repeated key presses. The machine applies consistent force to each key to simulate long-term usage, allowing us to monitor the wear and tear on both the rubber membrane and the conductive materials.
Test Conditions:
– After 100,000 presses, there should be no visible signs of deformation or failure in the rubber webbing.
– After 200,000 presses, the conductive parts must remain intact without any signs of detachment or degradation.
Equipment Used:
The testing machine applies a uniform pressing frequency of 2-5 presses per second, ensuring that the keyboard undergoes realistic and accelerated wear testing conditions to assess its durability in real-world applications.
-
Surface Abrasion and Wear Resistance
The surface of a silicone rubber keyboard, including the key legends or labels, must withstand abrasion from frequent use without significant degradation. This is particularly important for keyboards that will be used in environments where they will be exposed to friction, cleaning agents, or even harsh weather conditions.
Testing Method:
We use an alcohol abrasion testing machine, which simulates the wear caused by frequent use and cleaning. The keys are subjected to abrasive forces while a clean cloth soaked in 75-80% isopropyl alcohol is moved across the surface at a consistent speed of 1.5 rotations per second, with a load of 500g applied.
Test Conditions:
To pass the test, the key legends must remain intact, and the key surface must show minimal signs of wear even after 100 cycles of abrasion. This ensures that the keyboard will retain its aesthetic and functional qualities throughout its lifespan.
-
Environmental and Chemical Resistance Testing
Silicone rubber keyboards often operate in challenging environments, subject to temperature extremes, humidity, and exposure to chemicals. To ensure that our keyboards can withstand such conditions, we conduct thorough environmental and chemical resistance testing.
Testing Method:
The keyboards are subjected to varying environmental conditions, such as temperatures ranging from -40°C to +120°C, and exposure to a range of chemicals, including oils, solvents, and cleaning agents. We then evaluate the keyboard’s performance to ensure that it remains functional, flexible, and resistant to degradation.
Equipment Used:
We use specialized environmental chambers to simulate extreme temperature and humidity conditions, and chemical resistance stations to expose the keyboards to various chemicals. After exposure, we monitor the changes in flexibility, conductivity, and overall performance.
Conclusion
At Siliconekeytech, we take pride in our comprehensive and rigorous testing process, which ensures that each silicone rubber keyboard meets the highest standards of quality and performance. From precise dimensional accuracy to long-term durability, our testing procedures cover all critical aspects of keyboard functionality, ensuring that our products perform consistently and reliably under various conditions.
Our commitment to quality is supported by advanced testing equipment, adherence to industry standards, and our team’s vast experience in designing and manufacturing silicone rubber keyboards. We continuously invest in technology and process improvements to provide our customers with the highest-quality, durable, and reliable keyboards for every application.
