Conductive silicone keypads have become an essential component in a wide range of consumer and industrial electronic products. Known for their reliability, economic cost, and versatile switching solutions, they are commonly found in applications like remote controls for televisions, video games, electronic toys, industrial control equipment, and more. These keypads can be categorized into two primary types: non-conductive and conductive. While non-conductive keypads rely on mechanical switches, conductive silicone keypads use conductive materials to enable the electrical contact needed for switching.
This article will explore the various types of conductive materials used in silicone rubber keyboards, focusing on their differences in resistance, performance, and suitability for specific applications. Understanding the advantages and limitations of each conductive material is crucial for selecting the right one based on your application requirements.
Conductive Silicone Keyboards: Key Features
Conductive silicone keypads have gained widespread use due to their many practical advantages. They are durable, easy to clean, and customizable in terms of shape and design. Furthermore, they offer excellent reliability for high-volume, long-term use, making them a go-to choice for both consumer products and industrial systems. In conductive silicone keypads, the primary feature is the integration of conductive materials that allow for electrical signal transmission when the keys are pressed.
The key decision when designing a conductive silicone keypad is selecting the appropriate conductive material. The choice depends on factors such as the required resistance range, the desired tactile feel, cost constraints, and the environmental conditions the keypad will be exposed to. Below are the four most commonly used conductive materials in silicone rubber keypads.
-
Black Carbon Pills / Graphite Pills
Overview: Black carbon pills, also known as graphite pills, are one of the most commonly used conductive materials in silicone rubber keypads. They have varying resistance levels depending on the density of the conductive material used. These conductive pills are highly effective in applications where medium to high resistance is required. The typical diameter for carbon pills ranges from 2mm to 5mm, with a thickness of 0.2mm to 0.6mm.
Advantages:
– Durability: Carbon pills are known for their excellent durability, making them suitable for applications where the keypad will be exposed to frequent use.
– Customizability: The diameter and thickness of the carbon pills can be customized to meet specific design requirements. While smaller diameters (around 2mm to 3mm) can be challenging to manufacture, they can be customized by experienced manufacturers.
– Cost-Effective: Carbon pills offer a relatively low-cost solution for conductive keypads, making them ideal for mass production.
Disadvantages:
– Limited Resistance Range: While carbon pills are versatile, they may not be suitable for applications requiring very low resistance or ultra-sensitive switching performance.
– Size Constraints: The smaller the diameter of the carbon pills, the more challenging they are to produce. This can add complexity to the manufacturing process, especially for larger volumes of keypads with small-diameter pills.
Applications: Carbon pill-based keypads are widely used in consumer electronics, such as remote controls and video game controllers, where moderate conductivity is sufficient.
-

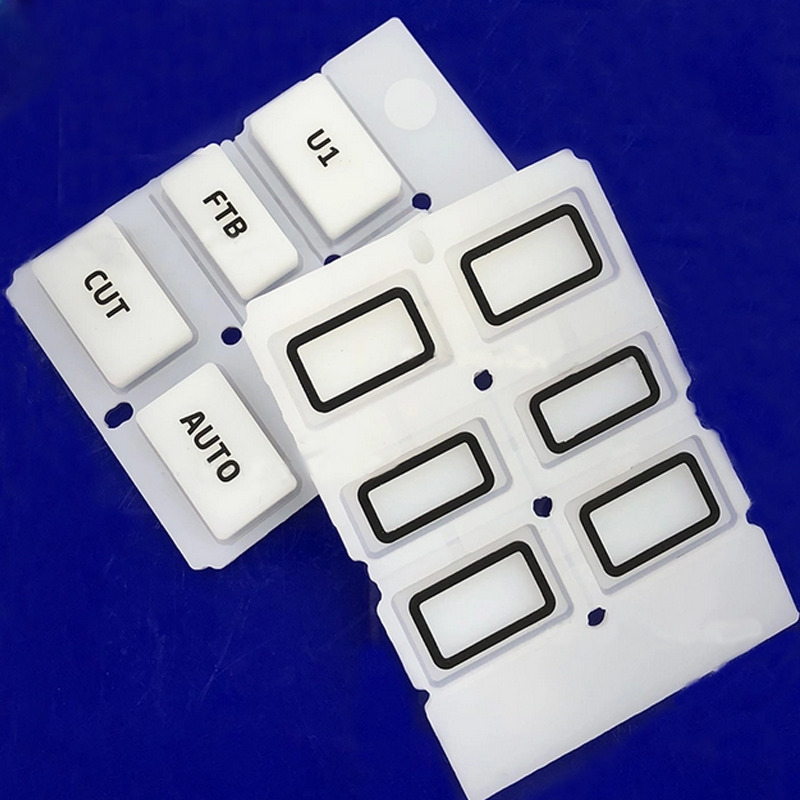

Conductive Ink Printing
Overview: Conductive ink printing has become a popular choice for silicone rubber keypads, especially when flexible shapes and cost-efficiency are important. Conductive ink is applied to the keypad design, and the ink dries to form conductive paths that facilitate electrical contact. This method allows for a high degree of flexibility in terms of design, making it ideal for applications that require non-traditional or custom shapes.
Advantages:
– Design Flexibility: Conductive ink can be printed in a wide range of shapes, from standard round and annular forms to more complex, custom designs. This is ideal for applications requiring unique or unconventional button shapes.
– Cost Efficiency: When producing keypads in large quantities, conductive ink printing is an economical choice. The process is faster than using other conductive materials, and the ink is relatively inexpensive compared to metal-based alternatives.
– Lightweight: Conductive ink does not add bulk to the keypad, making it suitable for compact, lightweight devices.
Disadvantages:
– Lower Conductivity: While conductive ink can be effective for many applications, its conductivity is generally lower than materials like metal domes or carbon pills. This means it may not be suitable for high-performance applications where low resistance is critical.
– Limited Lifespan: Conductive ink may wear out more quickly compared to solid conductive materials, especially in high-use scenarios.
Applications: Conductive ink printing is commonly used in electronic toys, consumer appliances, and low-cost electronic devices, where unique shapes and affordability are key priorities.
-

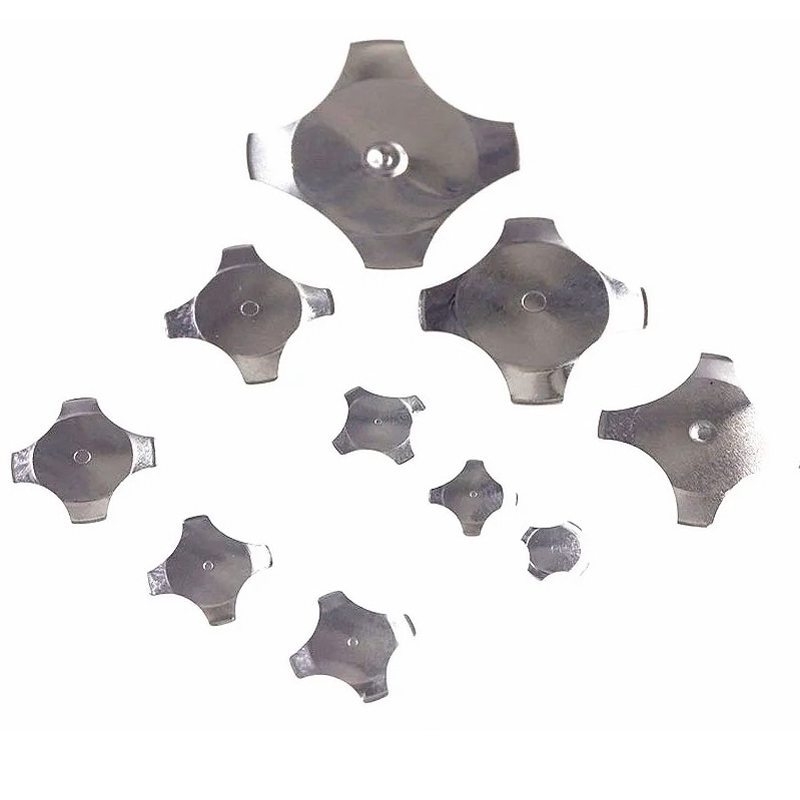

Metal Dome Keypads
Overview: Metal dome keypads are another highly popular choice for conductive silicone keypads, particularly in applications that demand low resistance and a tactile feedback mechanism. Metal domes are typically made from stainless steel or other metals such as nickel, gold, or copper, and they are shaped into a dome that collapses when pressed, providing both electrical contact and tactile feedback.
Advantages:
– Low Resistance: Metal domes offer a resistance range as low as 10 ohms, making them ideal for applications requiring quick, reliable switching.
– Tactile Feedback: Metal domes are known for their crisp, “clicky” feel when pressed, providing excellent tactile feedback for users.
– Customization: Metal domes can be manufactured in various shapes, including round, oval, and even custom geometries, to suit different design needs.
Disadvantages:
– Poor Tactile Feel for Some Users: While many users appreciate the metal dome’s tactile feedback, others find the feel too harsh or unsatisfactory, particularly for long-term use.
– Cost: Metal dome keypads are generally more expensive than carbon or ink-based keypads due to the cost of materials and manufacturing.
Applications: Metal dome-based keypads are commonly used in industrial control panels, medical devices, and high-end consumer electronics where low resistance and tactile feedback are crucial.
-

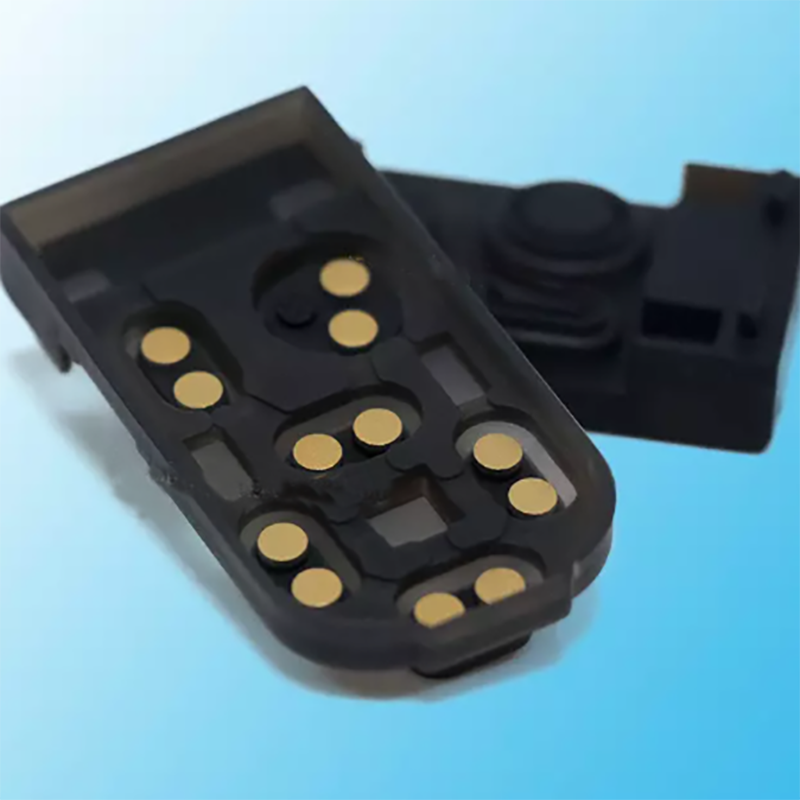

Gold / Copper / Nickel Pills
Overview: Gold, copper, and nickel pills are premium conductive materials used in silicone rubber keypads. These materials are chosen for their excellent conductivity and stable performance over time. They are typically used in high-performance applications where reliability and long lifespan are essential, such as in medical devices or industrial equipment.
Advantages:
– Superior Conductivity: Gold, copper, and nickel pills provide very low resistance, making them ideal for high-precision, high-reliability applications.
– Stable Performance: These materials are known for their long lifespan and stable performance even in harsh environments, making them suitable for critical applications where failure is not an option.
– High Quality: Gold and copper pills offer exceptional conductivity, ensuring reliable and consistent performance over extended periods.
Disadvantages:
– High Cost: Gold, copper, and nickel are more expensive materials, which can increase the cost of the keypad significantly. This makes them less suitable for mass-market applications where cost is a primary consideration.
Applications: These high-quality materials are typically used in medical devices, aerospace applications, military equipment, and other mission-critical systems where durability, conductivity, and reliability are non-negotiable.
| Conductive Material | Lifetime | Resistance | Diameter | Thickness | Advantages | Disadvantages |
| Carbon Pill | Above 10 million | 10-100 ohms | 1.5-8 mm | 0.2-0.6 mm | Lower resistance, stable lifetime | Limited design flexibility |
| Conductive Ink Printing | Above 10 million | 50-350 ohms | Available | 10-20 microns | Various shapes possible, versatile design | Limited resistance range |
| Metal Dome | Above 10 million | 1-100 ohms | Available | 0.05-0.1 mm | Low resistance, precise tactile response | Poor tactile feel |
| Metal Conductive Pill | Above 10 million | 1-100 ohms | Available | 0.05-2 mm | Low resistance, durable | High cost |
Choosing the Right Conductive Material for Your Silicone Rubber Keypad
When selecting the right conductive material for your silicone rubber keypad, it is essential to consider the specific requirements of your application. Key factors to take into account include:
– Resistance Needs: Different materials offer varying levels of resistance. Carbon pills and conductive ink printing are suitable for medium-resistance applications, while metal domes and gold/copper pills are better for low-resistance, high-performance applications.
– Tactile Feedback: If tactile feedback is important for your product, consider metal domes, which provide a distinctive “click” feel.
– Design Flexibility: Conductive ink printing offers the most flexibility in terms of shape, but if durability and long-lasting performance are key, carbon pills or metal domes may be a better fit.
– Cost Considerations: For high-volume, cost-sensitive applications, carbon pills or conductive ink printing are more economical, while metal domes and gold/copper pills come at a premium.
Conclusion
In summary, the choice of conductive material in silicone rubber keypads significantly impacts the performance, cost, and longevity of the keypad. Each material—whether it’s black carbon pills, conductive ink printing, metal domes, or gold/copper pills—has its own set of advantages and drawbacks that make it more or less suitable depending on the specific application. At Silicone Keytech, we specialize in providing tailored solutions for your conductive silicone keypads, and our expert engineering team is available to help you choose the right material for your needs. By understanding the unique properties of each material, you can ensure that your product delivers the best possible performance and durability. Contact us today for more information or to request a quote!
