Considerations for Designing Silicone Rubber Keypads in Injection Molding

Silicone rubber keypads are essential components in a wide range of devices, providing durability, flexibility, and the ability to endure extreme temperatures. These keypads are often made using injection molding and overmolding techniques. At Siliconekeytech, we specialize in the design and manufacturing of high-quality silicone rubber keypads, offering insights into the critical design considerations and best practices for achieving optimal functionality and aesthetic appeal. This guide will provide you with valuable knowledge on designing silicone rubber keypads, ensuring that your final product meets both performance and visual expectations.

Injection Molding: The Foundation of Silicone Rubber Keypad Production

Injection molding is one of the primary techniques used for manufacturing silicone rubber keypads. In this process, molten silicone is injected into a custom-designed mold, where it cools and solidifies into the shape of the keypad. The success of the injection molding process largely depends on the quality of the mold design, which plays a pivotal role in ensuring the keypad’s overall functionality, appearance, and performance.

Silicone Rubber Keypads in Injection Molding12

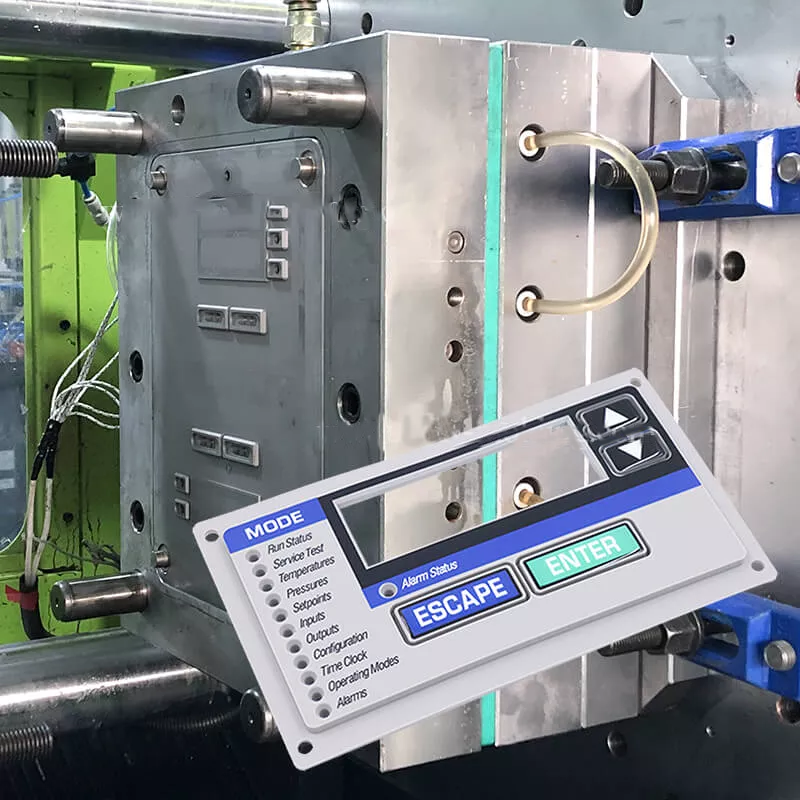

Key Considerations in Mold Design for Injection Molding

When designing molds for injection molding, several factors must be carefully considered to ensure the production of high-quality silicone rubber keypads:

  1. Mold Material Selection

The material used for the mold is crucial to the overall quality and durability of the final product. Steel molds are generally preferred for producing harder silicone keypads, as they offer better heat resistance and durability. On the other hand, aluminum molds are often chosen for softer silicone variants because they are lighter and more cost-effective for shorter production runs.

  1. Mold Geometry

The design of the mold geometry is essential to ensure that the silicone flows smoothly into the mold cavity. Designers must optimize the gate, runners, and venting systems to avoid air traps, sink marks, and other defects. Proper mold geometry allows for efficient filling, ensuring that the keypad takes on the desired shape without compromising on quality.

  1. Surface Finish of the Mold

A smooth surface finish is critical to avoid defects such as air traps or sink marks. These imperfections can affect the keypad’s tactile feel, as well as its overall aesthetic appearance. By using high-quality mold materials and refining the surface finish, manufacturers can reduce the risk of defects and ensure that the keypads have a clean and polished look.

Considerations for Designing Silicone Rubber Keypads in Injection Molding1

Overmolding: Adding Complexity and Functionality to Silicone Keypads

In some applications, silicone rubber keypads require added complexity and functionality. Overmolding is an advanced technique that involves molding an additional material, such as plastic or metal, over an existing silicone base. This process enables the creation of multi-material keypads that offer enhanced features, such as added durability, improved grip, and greater design flexibility.

Key Considerations for Designing Silicone Keypads for Overmolding

When designing keypads for overmolding, it’s essential to take the following factors into account:

  1. Base Material Thickness

The thickness of the base material plays a critical role in ensuring that the keypad maintains its structural integrity throughout the overmolding process. Designers must carefully determine the right thickness to support the additional overmolded layer while ensuring that the final product meets the required functionality and durability.

  1. Selection of Overmolded Material

The overmolded material must be selected based on the specific application of the keypad. For example, plastic overmolding may provide added strength and impact resistance, while a soft-touch rubber overmold could improve user comfort and control. The material should complement the silicone base and meet the performance, aesthetic, and durability requirements of the keypad.

Silicone Rubber Keypads in Injection Molding1

  1. Mold Design for Overmolding

The mold used for overmolding must be designed to accommodate both the base and overmolded materials. This involves ensuring that the cavity is large enough to account for both materials’ combined thickness and their different properties. Additionally, proper venting and gating must be in place to prevent material flow issues during the overmolding process.

Designing for Durability and Functionality: Final Considerations

Designing a silicone rubber keypad requires careful planning and attention to detail. In addition to mold material, geometry, and overmolding considerations, several other factors should be addressed during the design phase to ensure the final product meets both functional and aesthetic requirements.

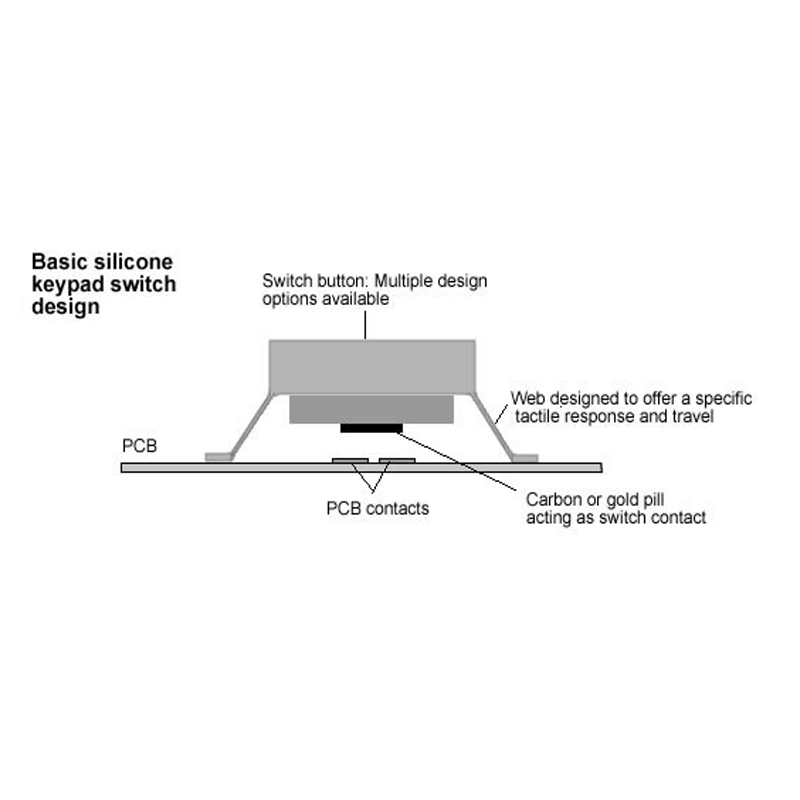

  1. Tactile Feel and Feedback

The tactile feel of a keypad is crucial, especially for devices that require frequent user interaction, such as remote controls or smartphones. The design must ensure that the silicone material provides a comfortable, responsive keypress without being too soft or too hard. Achieving the right balance between material hardness and flexibility is essential for user experience.

Silicone Rubber Keypads in Injection Molding5

  1. Electrical Conductivity

In many applications, silicone rubber keypads need to be electrically conductive to facilitate user input in electronic devices. Incorporating conductive materials into the silicone rubber, such as carbon or silver, can improve the keypad’s functionality, enabling it to register inputs accurately.

  1. Aesthetics and Branding

For many customers, the appearance of the keypad is just as important as its functionality. Siliconekeytech offers the ability to incorporate custom colors, textures, and branding elements into your keypads. Whether you’re looking to add a logo, a unique texture, or a specific color scheme, we work with you to bring your vision to life.

Why Choose Siliconekeytech for Your Silicone Rubber Keypad Production?

At Siliconekeytech, we specialize in the design and production of high-quality silicone rubber keypads for a variety of applications. Whether you are producing a single prototype or a large-scale production run, we are committed to ensuring that your keypads meet the highest standards of quality and functionality. Our team of experienced engineers and designers will work closely with you to optimize the design, ensuring that every detail is accounted for, from the initial concept to the final product.

If you’re ready to take the next step in designing your custom silicone rubber keypads or need assistance with the manufacturing process, contact Siliconekeytech today. We are here to help you create innovative, high-performance keypads that elevate your product offerings.

Silicone Compression Molding7

Conclusion: Achieving the Perfect Silicone Rubber Keypad Design

Designing and manufacturing silicone rubber keypads requires careful consideration of various factors, including mold material, geometry, overmolding, and tactile feedback. By focusing on these key design elements and working with a trusted manufacturer like Siliconekeytech, you can ensure that your keypads meet the specific needs of your application while providing superior performance, durability, and aesthetics.

Silicone Rubber Keypads in Injection Molding7

Whether you’re producing a custom keypad for a consumer device, industrial equipment, or any other application, we at Siliconekeytech are committed to helping you achieve a seamless manufacturing experience. Our expertise in silicone injection molding and overmolding processes guarantees that your keypads will not only perform well but also offer a premium user experience. Reach out to us today, and let’s create something exceptional together!
