The production of silicone rubber keyboards is an intricate process that requires meticulous attention to detail to ensure a high-quality final product. This article will delineate each stage involved in the fabrication of these essential input devices, offering a detailed understanding of the methodologies employed in their manufacturing. By the conclusion, you will possess an in-depth insight into the production techniques utilized in creating silicone rubber keyboards.
Silicone rubber keyboards, often referred to as elastomeric keyboards, are specialized input devices crafted from compression-molded silicone rubber. Designed for seamless integration with printed circuit boards (PCBs), these keyboards are employed across diverse sectors. The silicone material is composed of silicon, oxygen, hydrogen, and carbon, endowing these keyboards with outstanding flexibility and durability.
Key Advantages of Silicone Rubber Keyboards in Demanding Environments
Silicone rubber keyboards utilize embedded carbon contacts to engage electrical switches, providing tactile feedback upon actuation. Their adaptability and extensive customization options have rendered them a preferred choice in numerous industries.
These keyboards excel in compression molding, combining unique mechanical and chemical properties that often exceed those of conventional rubber alternatives. Their resilience against environmental stressors makes them particularly suitable for rigorous applications.
Notably, silicone rubber keyboards exhibit exceptional durability, showcasing superior tear strength and tensile properties, even in extreme temperature variations. Their non-reactive nature ensures reliable performance in harsh environments. Furthermore, their inherent light diffusion characteristics facilitate seamless LED backlighting, while their waterproof design protects the underlying circuit board from potential spills.
The Production Process of Silicone Rubber Keyboards
Step 1: Tool Design

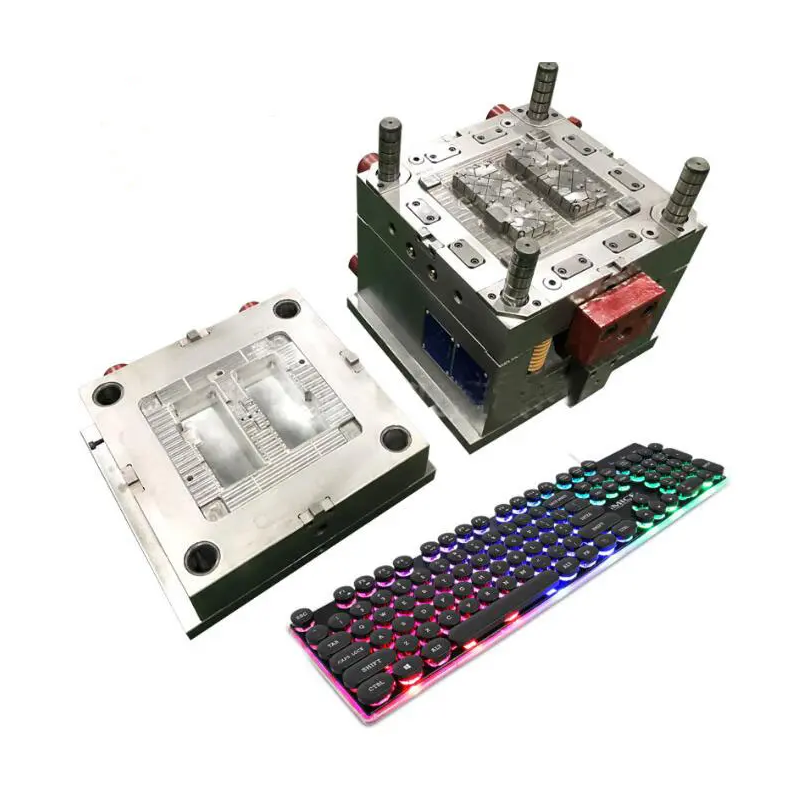

The manufacturing process begins with the creation of a dual-part mold, comprising a silicone compression molding tool (upper section) and the molded keyboard (lower section). Precision machinery, such as EDM and CNC milling machines, is utilized to ensure the mold adheres to exact specifications. Pre-heating the tool enhances the molding quality. Keyboards are designed with specific tactile feedback requirements, typically necessitating about 0.060 inches of travel for optimal response. The actuation forces vary, with cone-shaped keys requiring between 20 and 250 grams, while flat keys generally need between 20 and 100 grams. A minimum return force of 30 grams is essential to prevent sticking.
Step 2: Material Selection
The production process employs two primary types of silicone: liquid silicone rubber (LSR) and gum stock silicone. LSR, a platinum-cured silicone, offers exceptional resistance to extreme temperatures and features a viscosity similar to petroleum jelly, making it ideal for economical custom molding. In contrast, gum stock silicone has a thicker, dough-like consistency and requires a more complex preparation involving high-temperature mixing and the addition of a peroxide catalyst.
Step 3: Preparing Preforms
In compression molding, the quality of silicone keyboards relies on the preparation of silicone preforms. Silicone is meticulously weighed, cut, and colored according to client specifications. These preforms are subsequently positioned in the mold cavities to ensure consistent filling for uniform production.
Step 4: Loading Preforms
Once the preforms are prepared, they are placed into the mold, and the tool is closed within a compression molding press. Proper alignment within the mold cavity minimizes flash, or excess material, around the edges. Heat and pressure are then applied to shape the silicone.
Step 5: Curing and Ejection
Curing typically occurs for approximately 5 minutes at 180°C. Following curing, the silicone keyboards are carefully ejected using protective gloves and compressed air to prevent damage to the hot components.
Step 6: Screen Printing
To define the functions of each key, screen printing is employed to apply necessary symbols and letters. This method utilizes a precise screen mesh to ensure an even application of paint on the keytops, yielding high-quality results that are cost-effective for mass production.
Step 7: Laser Etching
For enhanced detail, laser etching is implemented post-curing. This technique enables precise and high-definition markings, ensuring clear and consistent labeling on the keyboards.
Step 8: Tactile Feedback Implementation
The tactile feedback of silicone keyboards can be achieved through either conductive carbon pills or metal dome switches. Carbon pills are molded directly into the keyboards, providing contact with the switch upon pressing, while metal dome switches offer a tactile “snap” effect when they complete the circuit with the PCB.
Step 9: Quality Assurance Testing
A series of tests are conducted to confirm durability and performance. A button life test assesses longevity through repeated key presses, an alcohol abrasion test checks for print durability, and actuation force testing ensures compliance with tactile standards.
Conclusion
The manufacturing of silicone rubber keyboards encompasses several critical stages, including molding, trimming, printing, and assembly. A comprehensive understanding of these processes is essential for businesses to achieve consistent quality, minimize defects, and deliver high-performance keyboards to their clientele.
At Siliconekeytech, we specialize in producing custom silicone rubber keyboards tailored to your specific design requirements. With our extensive expertise in silicone rubber keyboard manufacturing, we guarantee precision and quality in every product we deliver.
Since our inception in 1998, Siliconekeytech has positioned itself as a leading manufacturer of custom silicone rubber components in China. Our product offerings include compression-molded keyboards and die-cut parts. To explore our extensive range of products, please visit our product page.
